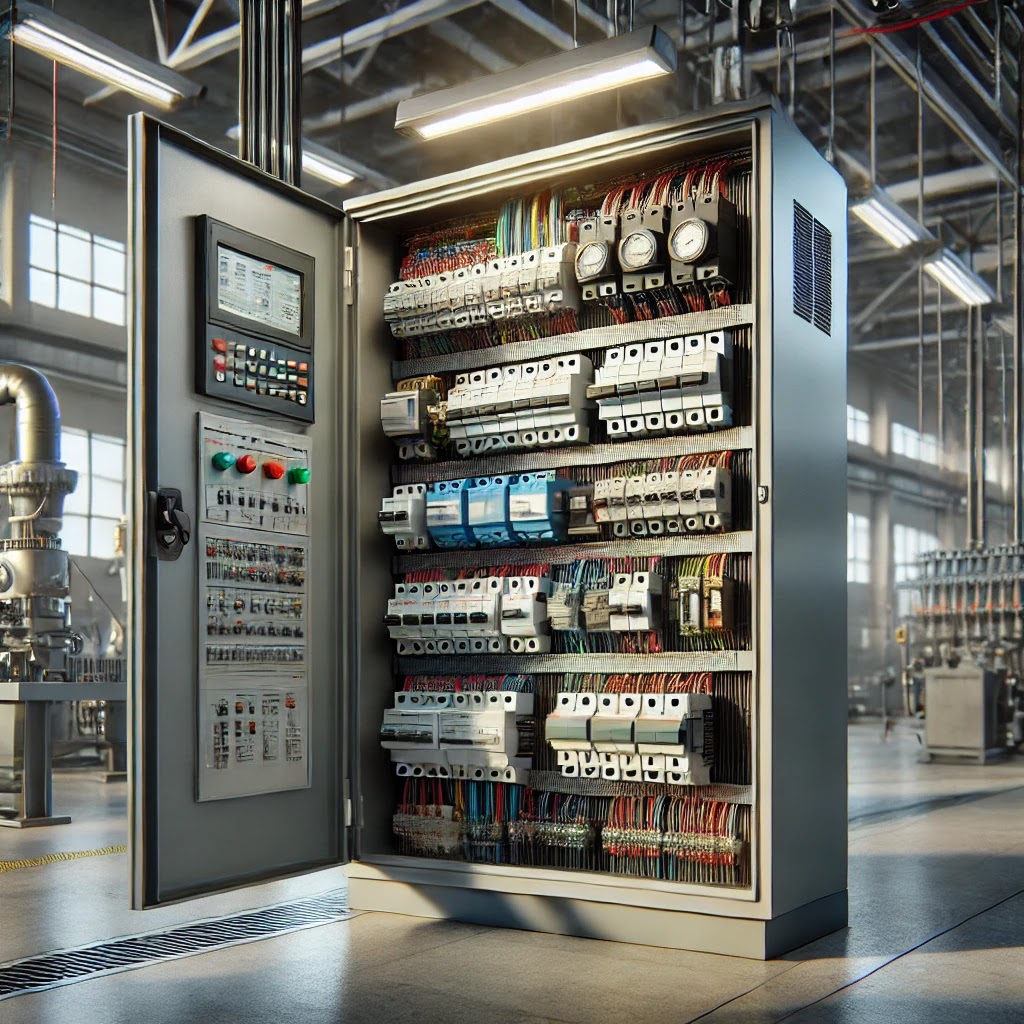

Electrical control panels are the brain of automation and power distribution systems, ensuring safe and efficient operation of machinery, motors, and other electrical equipment. This guide delves into the technical aspects of building electrical control panels, including design parameters, calculations, and examples.
1. Overview of Electrical Control Panels
Electrical control panels consist of an enclosure housing electrical components that control and monitor electrical devices. These panels offer centralized control, protection, and regulation of various operations. The key components typically include:
- Main Circuit Breakers: Protect against overcurrent and short circuits.
- Contactors/Relays: Control high-power circuits using low-power signals.
- Terminal Blocks: Provide connection points for wiring.
- PLC (Programmable Logic Controller): Executes automated control tasks.
- HMI (Human-Machine Interface): Provides an interface for operators to control and monitor the system.
- Transformers: Step down/up voltages as required by specific devices.
- Pushbuttons and Switches: Allow for manual control of systems.
2. Design Considerations and Parameters
Designing an electrical control panel involves several calculations and parameters. These include:
- Voltage Rating (V): The voltage that the control panel must support, e.g., 230V, 400V, 600V.
- Current Rating (I): The total current capacity that the panel must handle. The current is determined using the power requirement and the voltage. Use the following formula:
where:
I= Current in amperes (A)P= Power in watts (W)V= Voltage in volts (V)
For example, if a panel is controlling motors with a total power consumption of 10 kW at 400V, the current would be:
Ensure that all components, including circuit breakers, contactors, and wiring, are rated for at least 25A with an appropriate safety margin (typically 25-30%).
Power Factor Correction (PFC): If the load involves motors or other inductive devices, the power factor should be taken into account. To correct the power factor, capacitors can be added to the panel to reduce the phase difference between current and voltage.
Short Circuit Rating (kA): The short circuit current rating (SCCR) of the panel is essential for safety. This rating must exceed the available fault current at the installation point. A calculation example:
where:
ISC= Short circuit currentVsource= Source voltageZtotal= Total impedance from the transformer to the control panel
If the source voltage is 400V and the total impedance is 0.02 ohms, the short-circuit current is:
Therefore, the control panel must be designed to handle 20kA of short-circuit current, ensuring the selection of appropriate protection devices.
3. Step-by-Step Process to Build Electrical Control Panels
Step 1: Define Requirements and Specifications
The first step in building an electrical control panel is defining the operational requirements:
- Voltage and Current Ratings: Choose components rated for the operating voltage and current. For instance, if the system operates at 400V with a total current of 50A, ensure all devices (breakers, relays, etc.) are rated for 400V/50A or more.
- Environmental Conditions: Based on factors such as temperature, moisture, and dust, choose the appropriate enclosure with a corresponding NEMA or IP rating. For outdoor use, NEMA 4X or IP66 is typically selected.
- Type of Load: If the panel will control motors, you may need to include motor starters, soft starters, or VFDs (Variable Frequency Drives) to ensure safe operation.
Step 2: Select Components
The selection of components is based on the load, type of control, and protection required:
- Main Circuit Breaker Calculation: Use the current calculated earlier and select a breaker with a trip rating above the calculated current. For instance, for a 50A load, choose a breaker with a rating of 63A to accommodate inrush currents.
- Control Components: For automation, select a PLC with sufficient inputs and outputs (I/O). For example, a PLC might need to control 10 motors, so select one with at least 10 outputs and additional inputs for sensors and safety devices.
- Control Transformers: If control circuits require lower voltage (e.g., 120V control from a 400V source), select a transformer rated for the load. For example, if the control system requires 1kW at 120V, the transformer rating should be:
where 0.8 is the transformer’s power factor.
Step 3: Design the Layout
Design the physical arrangement of the components within the panel, ensuring safety and ease of access:
- Power and Control Separation: Separate power circuits (main breakers, contactors) from control circuits (PLC, relays). This minimizes electrical noise and simplifies troubleshooting.
- Ventilation and Heat Dissipation: Calculate the heat generated by each component and ensure adequate ventilation or forced cooling. Heat dissipation can be calculated using the following equation:
where:
Q= Heat energy (Joules)I= Current (Amperes)R= Resistance (Ohms)t= Time (Seconds)
If a component is rated for 20A and has a resistance of 0.05 ohms, operating for 10 seconds, the heat generated would be:
Adequate ventilation or a fan is required to dissipate this heat, preventing overheating.
Step 4: Assemble the Control Panel
- Mount Components: Attach components securely to the backplate of the enclosure using DIN rails or direct mounting, ensuring proper spacing between components for heat dissipation and wiring access.
- Wire Sizing and Routing: Select wires based on the current-carrying capacity and route them neatly using cable ducts or ties. For example, for a 25A circuit, use a wire with a capacity of 30A to allow a safety margin.
Step 5: Testing and Commissioning
After assembly, the panel must undergo rigorous testing:
- Insulation Testing: Verify the integrity of insulation using a megohmmeter, ensuring no leakage paths between conductors.
- Continuity Testing: Check all circuits for continuity to ensure proper connections.
- Functional Testing: Test the operation of the control logic, ensuring that each input produces the correct output, and the system operates as expected under load.
- Safety Testing: Test protection devices like circuit breakers and fuses to ensure they trip correctly under fault conditions.
Conclusion
Building electrical control panels requires careful planning, precise calculations, and attention to detail to ensure reliability and safety. This guide has provided the key steps and technical calculations needed to design and assemble control panels for a range of applications, from motor control to automation. By following these guidelines, you can build panels that meet both functional and safety requirements.
