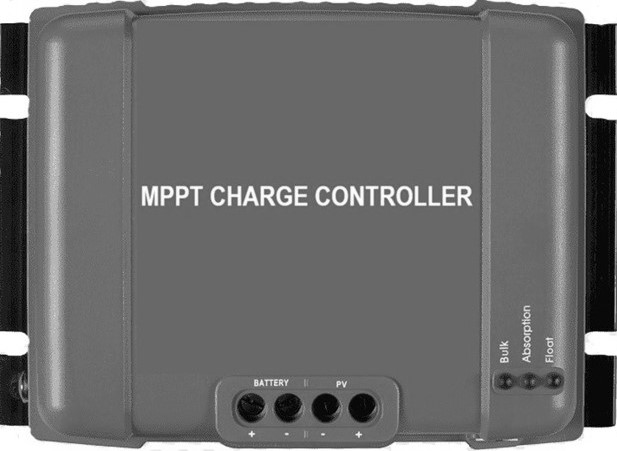

Understanding the Role of an MPPT Charge Controller
The MPPT charge controller regulates the charging of batteries in a solar power system by tracking the maximum power point of the solar array and converting excess voltage to current, thereby maximizing energy harvest. It ensures that the battery is charged in the most efficient manner possible by adjusting the input power from the solar panels.
Factors to Consider When Choosing an MPPT Charge Controller
When selecting an MPPT charge controller, several factors need to be taken into account:
- Battery Bank Voltage: The charge controller must be compatible with your battery bank voltage (12V, 24V, 48V, etc.). Ensure that the MPPT controller matches the nominal voltage of your battery system.
- Solar Panel Voltage and Current: The input voltage and current from the solar panels need to be within the operating range of the MPPT controller. A mismatch can lead to underperformance or damage.
- Maximum Power Output: The MPPT controller should be able to handle the peak wattage of your solar array. This will depend on the number of panels, their individual power output, and the total system voltage.
- Temperature Range: The controller should be able to perform efficiently under the temperature conditions expected in your location.
- Efficiency: Look for high-efficiency controllers, typically 98% or above, to minimize power loss.
How to Calculate the Correct MPPT Charge Controller Size
Properly sizing the MPPT charge controller requires calculating the solar array’s total wattage and voltage to ensure compatibility with the charge controller’s specifications. Follow these steps:
Step 1: Calculate the Total Wattage of Your Solar Panels
Multiply the wattage of each solar panel by the number of panels in your array to get the total system wattage. For example:
Total Wattage = Number of Panels × Wattage of Each PanelIf you have 10 panels, each producing 300W, the total wattage is:
Total Wattage = 10 × 300W = 3000WStep 2: Check the Solar Panel Voltage
Solar panels typically come in 12V, 24V, or 48V variants. Verify the panel’s open circuit voltage (Voc), which can be found in the datasheet. For example, if each panel has a Voc of 37V, your system’s voltage may be in the 36-48V range (depending on series or parallel configuration). This voltage must be within the charge controller’s allowable input range.
Step 3: Match the Controller's Input Voltage
The MPPT controller’s input voltage range should cover the Voc of your solar panels. A general rule of thumb is to ensure that the Voc does not exceed the controller’s maximum input voltage by more than 25%. If your solar array exceeds this, you will need a controller with a higher voltage capacity.
Step 4: Calculate the Required Current
To determine the required current for your charge controller, divide the total system wattage by the system voltage:
Current (Amps) = Total Wattage / System VoltageFor a 3000W system and a 48V battery bank:
Current = 3000W / 48V = 62.5AStep 5: Select the Appropriate Charge Controller
Choose an MPPT charge controller with a current rating greater than the required current, typically 10-20% higher to account for possible system fluctuations. In this example, a 70A charge controller would be suitable for this 3000W system.
Example: Sizing an MPPT Charge Controller for a 3kW Solar System
Let's apply the above steps to a 3kW solar system with 10 panels, each rated at 300W, and a 48V battery bank:
- Total wattage = 300W x 10 panels = 3000W
- System voltage = 48V (battery bank voltage)
- Required current = 3000W / 48V = 62.5A
- Select a charge controller with at least 70A current rating and an input voltage range that covers your panels' Voc (37V per panel x 10 panels = 370V max).
For this example, a 70A MPPT charge controller with a voltage range of 9-100V would be suitable, ensuring maximum energy harvest and system safety.
FAQs
1. What happens if the MPPT charge controller is undersized?
If the charge controller is undersized, it may not be able to handle the solar array's maximum power output, leading to energy loss, overheating, and potential system failure. It’s crucial to select a controller that exceeds the minimum power requirements.
2. Can I use a 12V charge controller for a 24V battery bank?
No, you should always match the charge controller to the battery bank voltage. A 12V charge controller cannot properly charge a 24V battery bank and may cause damage to both the controller and batteries.
3. Can an MPPT controller work with any solar panel?
Most MPPT controllers work with standard solar panels, but it's important to check the voltage and current compatibility. Some high-voltage panels or non-standard configurations may require specific MPPT controllers with higher input ranges.
4. How do I know if my MPPT charge controller is operating efficiently?
Efficiency can be monitored by checking the controller’s performance metrics, including input and output voltage and current. A highly efficient controller should minimize energy loss, converting nearly all the power from the solar panels into usable energy for the battery bank.
