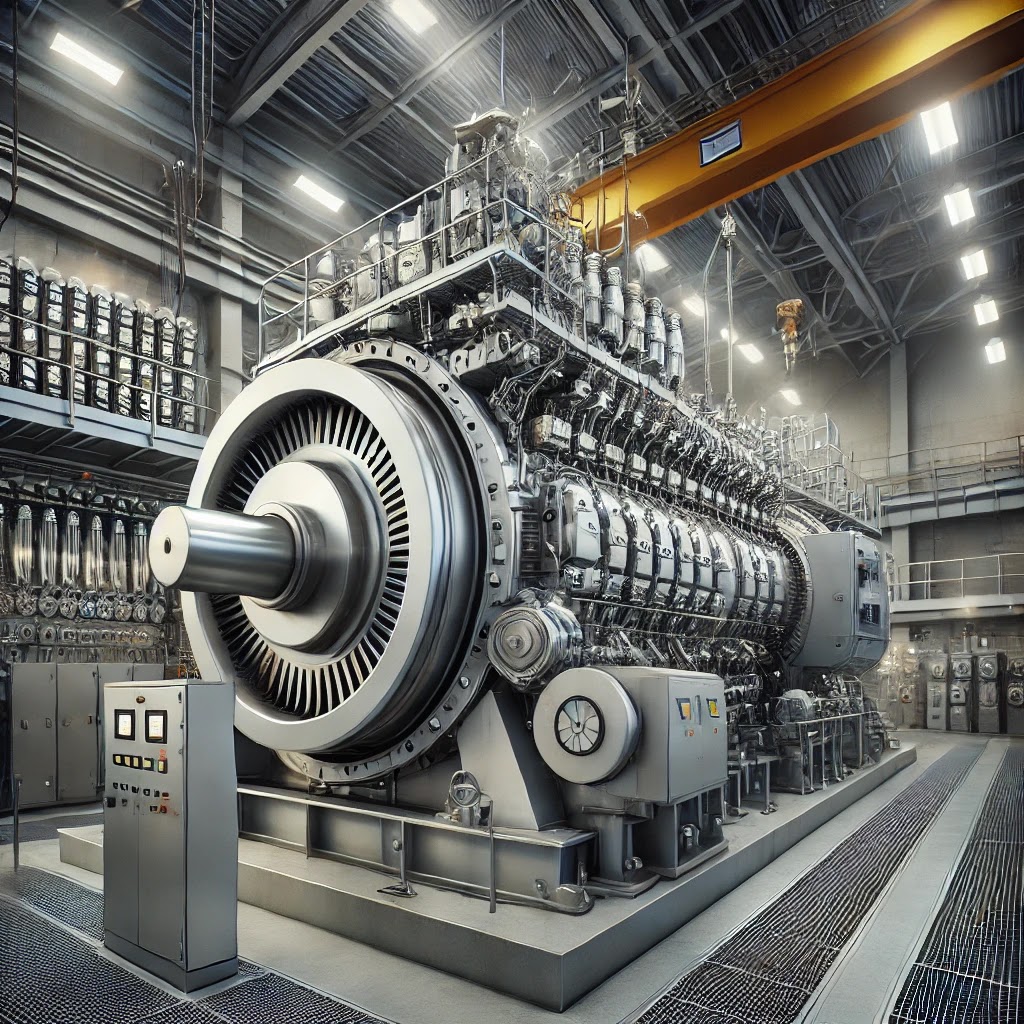

How Electrical Power is Generated by an AC Generator

An AC (alternating current) generator, also known as an alternator, is a device that converts mechanical energy into electrical energy. This process is based on Faraday's Law of Electromagnetic Induction, which states that a voltage (EMF) is induced in a conductor when it experiences a changing magnetic field.

The fundamental principle behind AC generation is that when a coil rotates in a magnetic field, an alternating voltage is induced due to the continuous change in magnetic flux linkage.

Basic Working Principle

An AC generator consists of the following key components:

1. Stator: The stationary part of the generator containing the armature windings where EMF is induced.
2. Rotor: The rotating component that produces a magnetic field, typically using electromagnets.
3. Slip Rings & Brushes: Used in synchronous generators to provide a continuous connection between the rotating and stationary parts.
4. Prime Mover: A mechanical device (like a turbine or an engine) that rotates the rotor.

When the rotor is rotated by an external prime mover, the flux linkage in the stator windings changes, inducing an AC voltage according to Faraday’s Law:

$$E = -N \frac{d\Phi}{dt}$$

where:

• $E$ = Induced EMF (volts)
• $N$ = Number of turns in the coil
• $\Phi$ = Magnetic flux (Wb)
• $t$ = Time (s)

Generation of Sinusoidal Voltage

As the rotor rotates, the magnetic field varies sinusoidally, leading to the generation of a sinusoidal voltage given by:

$$E(t) = E_{max} \sin(\omega t)$$

where:

• $E_{max}$ = Maximum induced voltage
• $\omega$ = Angular velocity of rotation (rad/s)
• $t$ = Time (s)

The frequency of the generated AC voltage depends on the speed of the rotor and the number of poles of the generator:

$$f = \frac{P \cdot N}{120}$$

where:

• $f$ = Frequency of generated voltage (Hz)
• $P$ = Number of poles
• $N$ = Rotational speed in RPM

Power Generation in an AC Generator

The instantaneous power in an AC generator is given by:

$$P(t) = E(t) \cdot I(t)$$

For a purely resistive load:

$$P_{avg} = V_{rms} I_{rms} \cos(\theta)$$

where:

• $P_{avg}$ = Average power (W)
• $V_{rms}$ = RMS voltage (V)
• $I_{rms}$ = RMS current (A)
• $\cos(\theta)$ = Power factor

Example Calculation

Consider an AC generator producing 400 V RMS at 50 Hz, supplying a load drawing 20 A with a power factor of 0.9.

The real power output is:

$$P = 400 \times 20 \times 0.9 = 7200 W = 7.2 kW$$

Efficiency of an AC Generator

The efficiency of an AC generator is given by:

$$\eta = \frac{P_{out}}{P_{in}} \times 100\%$$

where:

• $\eta$ = Efficiency (%)
• $P_{out}$ = Output electrical power (W)
• $P_{in}$ = Input mechanical power (W)

Factors Affecting Efficiency

1. Copper Losses: Copper losses occur due to the resistance in the armature and field windings. As current flows through these windings, heat is generated, leading to energy loss. This can be minimized by using conductors with lower resistance, such as high-purity copper.

2. Iron Losses: These include hysteresis and eddy current losses in the stator core. Hysteresis loss occurs due to the continuous magnetization and demagnetization of the core material, while eddy currents are induced within the core due to the changing magnetic field. Using laminated cores and materials with low hysteresis coefficients can help reduce these losses.

3. Mechanical Losses: Friction in the bearings, windage losses due to air resistance, and other mechanical factors contribute to mechanical losses. Proper lubrication and the use of high-quality bearings can help minimize these losses.

4. Excitation Losses: Excitation losses arise from the power required to energize the field windings. Efficient excitation systems, such as brushless exciters and automatic voltage regulators (AVRs), can help optimize this aspect.

Improving efficiency involves reducing resistive losses, using better materials for the core, and optimizing cooling mechanisms to dissipate excess heat efficiently.

Types of AC Generators

1. Synchronous Generator: This type of generator operates at a constant speed and produces a fixed frequency output. It requires external excitation for its field winding and is widely used in large power plants, including hydroelectric and thermal stations.

2. Induction Generator: Unlike synchronous generators, induction generators operate at a slip frequency. They do not require separate field excitation and instead derive reactive power from the grid. These generators are commonly used in wind energy applications and small-scale power generation setups.

3. Brushless Generator: Brushless generators eliminate the need for slip rings and brushes by using a rotating magnetic field. They are known for their reliability, lower maintenance requirements, and high durability, making them ideal for aviation, marine, and industrial applications.

FAQs

1. What is the role of the prime mover in an AC generator?

The prime mover supplies the mechanical energy needed to rotate the rotor and induce voltage in the stator.

2. How is the frequency of an AC generator controlled?

The frequency depends on the rotational speed of the rotor and the number of poles. It is regulated by controlling the speed of the prime mover.

3. What happens if the load on a generator increases?

As the load increases, the current drawn from the generator increases, requiring more mechanical power input to maintain voltage and frequency.

4. How is power factor important in AC generation?

A lower power factor means higher current for the same power output, leading to increased losses and reduced efficiency.

5. Can an AC generator work without a magnetic field?

No, a changing magnetic field is essential for inducing voltage in the stator windings.

6. Why do power plants use three-phase generators?

Three-phase generators provide a more efficient and balanced power supply with less conductor material than single-phase systems.

7. How do you maintain an AC generator?

Regular maintenance includes checking insulation resistance, lubricating bearings, inspecting windings for overheating, and testing output voltage.

Conclusion

An AC generator is a crucial component in electrical power generation. It works on the principle of electromagnetic induction, where a rotating magnetic field induces an alternating voltage in the stator windings. The generated power depends on voltage, current, frequency, and power factor, making efficiency and load management vital aspects of generator operation. Understanding the working principles, efficiency factors, and applications helps in designing reliable power generation systems for various industries.
