How to Use MOSFETs in Switching and Amplifier Circuits

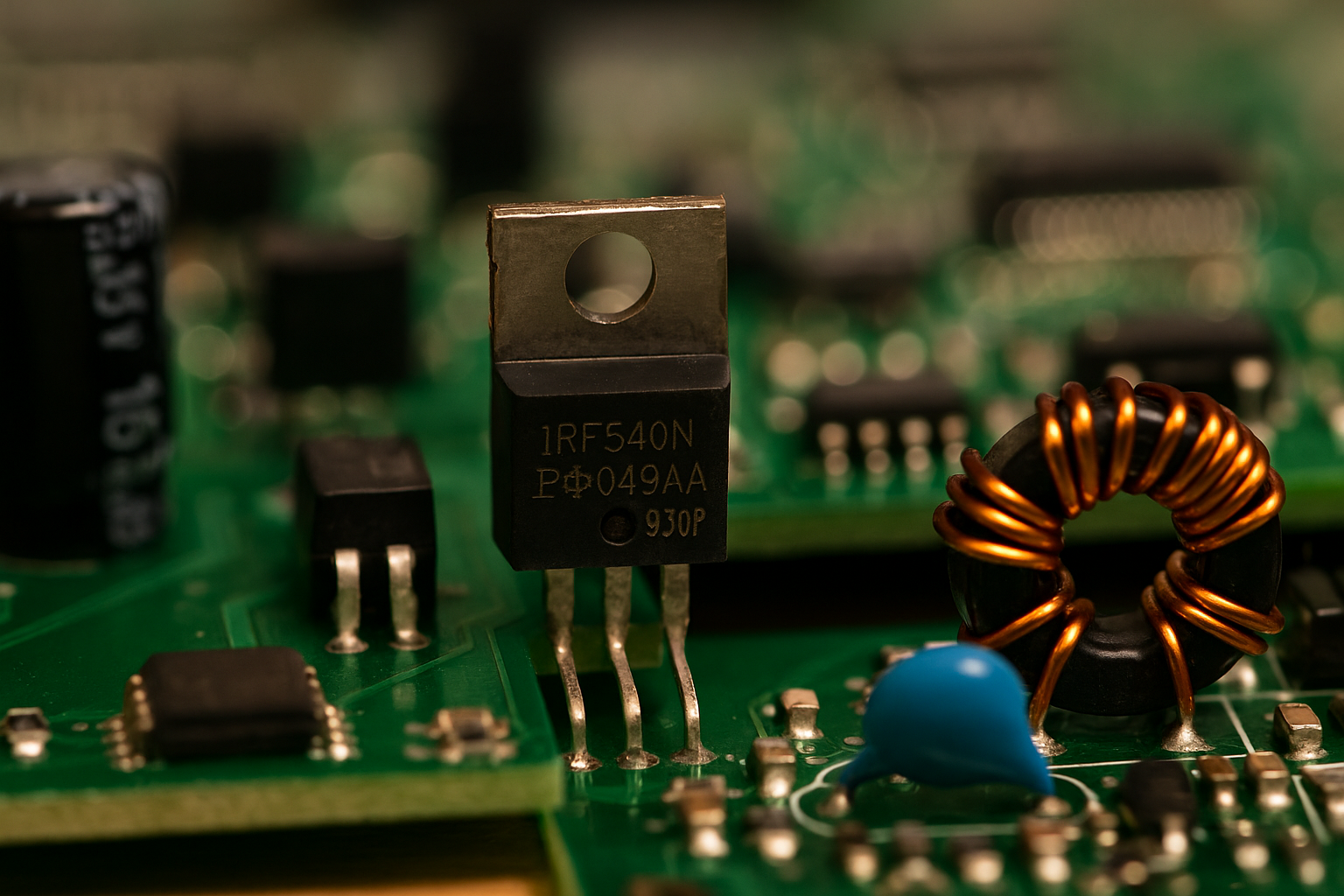

MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) are fundamental components in modern electronics, prized for their high input impedance, fast switching capabilities, and scalability. Their usage spans from low-power analog circuits to high-power switching converters. This article delves deeply into how to effectively use MOSFETs in switching and amplifier configurations, offering detailed explanations, practical design considerations, and useful FAQs.

1. Introduction to MOSFETs

A MOSFET is a type of field-effect transistor that controls the flow of current using an electric field. There are two main types:

Enhancement-mode MOSFETs (E-MOSFETs): Normally off. Require gate voltage to conduct.
Depletion-mode MOSFETs (D-MOSFETs): Normally on. Require negative gate voltage (for n-channel) to turn off.

MOSFETs also come in n-channel and p-channel varieties. N-channel devices are generally preferred due to better electron mobility, which gives them lower ON resistance and faster switching times.

2. MOSFETs as Switches

2.1 Operating Principles

A MOSFET acts as an electronic switch when it operates in the cut-off and saturation (also called linear or triode) regions.

OFF State (Cut-off Region):
$V_{GS} < V_{TH} \Rightarrow I_D = 0$
ON State (Saturation/Ohmic Region):
$V_{GS} > V_{TH}$ and $V_{DS} < (V_{GS} - V_{TH})$

2.2 Switching Modes: On/Off States

When using an n-channel enhancement-mode MOSFET:

Apply $V_{GS} = 0V$ : Switch OFF
Apply $V_{GS} \geq V_{TH}$ (typically 5V or 10V): Switch ON

For high-speed and low-loss switching, ensure:

Gate is driven quickly (use gate drivers if needed)
Use proper heat sinking for high current paths

2.3 Application Examples

Low-side Switching: Load connected between MOSFET drain and Vcc. Gate is referenced to ground. Easier to drive.
High-side Switching: Load connected between power source and MOSFET source. Needs gate voltage higher than source → requires a bootstrap or gate driver IC.
PWM Motor Control: Using MOSFETs for variable speed motor control via Pulse Width Modulation.
DC-DC Converters: Used in buck, boost, and buck-boost topologies.

3. MOSFETs as Amplifiers

MOSFETs can amplify small input signals when biased in the active (saturation) region.

3.1 Operating Region for Amplification

To use a MOSFET as an amplifier, operate it in the saturation region, where:

V_{GS} > V_{TH}, \quad V_{DS} > (V_{GS} - V_{TH})

The drain current is:

I_D = \frac{1}{2} \mu_n C_{ox} \frac{W}{L} (V_{GS} - V_{TH})^2

Where:

$\mu_n$ = mobility
$C_{ox}$ = gate oxide capacitance per unit area
$W/L$ = channel width-to-length ratio

3.2 Common MOSFET Amplifier Configurations

Common Source (CS) Amplifier:
- Most widely used.
- High voltage gain.
- Inverts the signal.
Common Gate (CG) Amplifier:
- Low input impedance.
- No phase inversion.
Common Drain (CD) or Source Follower:
- Voltage gain ≈ 1.
- High input and low output impedance.
- Good for buffering.

3.3 Biasing and Load Line Analysis

To ensure linear operation:

Set $V_{GS}$ to bias the transistor in the saturation region.
Use resistor-divider or current-source biasing.

Load line analysis:

Plot the DC load line using the external resistor and supply voltage.
Choose a Q-point (quiescent point) for maximum undistorted swing.

4. Design Considerations

Parameter	Switching Applications	Amplifier Applications
Region of Operation	Cut-off and Triode	Saturation
Gate Drive Requirement	Fast, high current	Stable DC bias
Heat Dissipation	Depends on $I_D \cdot V_{DS}$ during switching	Moderate
Speed	Very high	Depends on capacitance
Linearity	Not important	Critical
Gate Drive Method	Gate driver ICs	Biasing resistors

5. Comparison Table: Switching vs Amplifier Applications

Feature	As Switch	As Amplifier
Gate voltage control	Digital (ON/OFF)	Analog bias
Power dissipation	Low (ideally zero when fully ON)	Continuous
Output	Digital (0 or Vcc)	Amplified version of input
Efficiency	High	Moderate
Typical Usage	Power electronics, digital control	Signal processing, audio amps

6. Frequently Asked Questions (FAQs)

Q1: Can a single MOSFET be used for both switching and amplification?

A: Theoretically yes, but practically not efficient. Switching and amplification have different operating requirements and design constraints. Dedicated circuits are recommended.

Q2: What is the main difference between MOSFET operation in switching and amplification?

A: Switching uses the MOSFET as a digital ON/OFF device operating in cut-off and triode regions, while amplification uses it in the saturation region for analog signal gain.

Q3: Why is n-channel preferred over p-channel MOSFETs?

A: N-channel MOSFETs have higher electron mobility, resulting in lower ON resistance and faster switching speeds.

Q4: Do I need a gate resistor for switching?

A: Yes, especially in high-speed switching. A gate resistor limits inrush current and controls switching speed to reduce EMI.

Q5: Why does a MOSFET heat up even in switching mode?

A: Power is dissipated during transitions between ON and OFF states due to overlap of voltage and current. Also, if not fully turned ON, it operates in linear mode causing more heat.

7. Conclusion

MOSFETs are versatile components that can be optimized for both switching and amplification depending on how they are biased and configured in a circuit. As a switch, they offer efficient control in digital and power electronics. As an amplifier, they provide excellent voltage gain with high input impedance. Understanding their operating regions, characteristics, and design requirements is key to unlocking their full potential in your electronic designs.
