Ohm’s Law Explained: The Foundation of All Electrical Circuits

Ohm’s Law is one of the most fundamental and widely used principles in electrical engineering and physics. Whether you're designing complex circuits, analyzing systems, or troubleshooting electrical devices, an understanding of Ohm’s Law is essential. In this article, we will dive deep into Ohm’s Law, explore its mathematical formulation, and discuss its real-world applications. This guide is designed for students, professionals, and anyone interested in understanding the core concepts of electrical circuits.

What is Ohm’s Law?

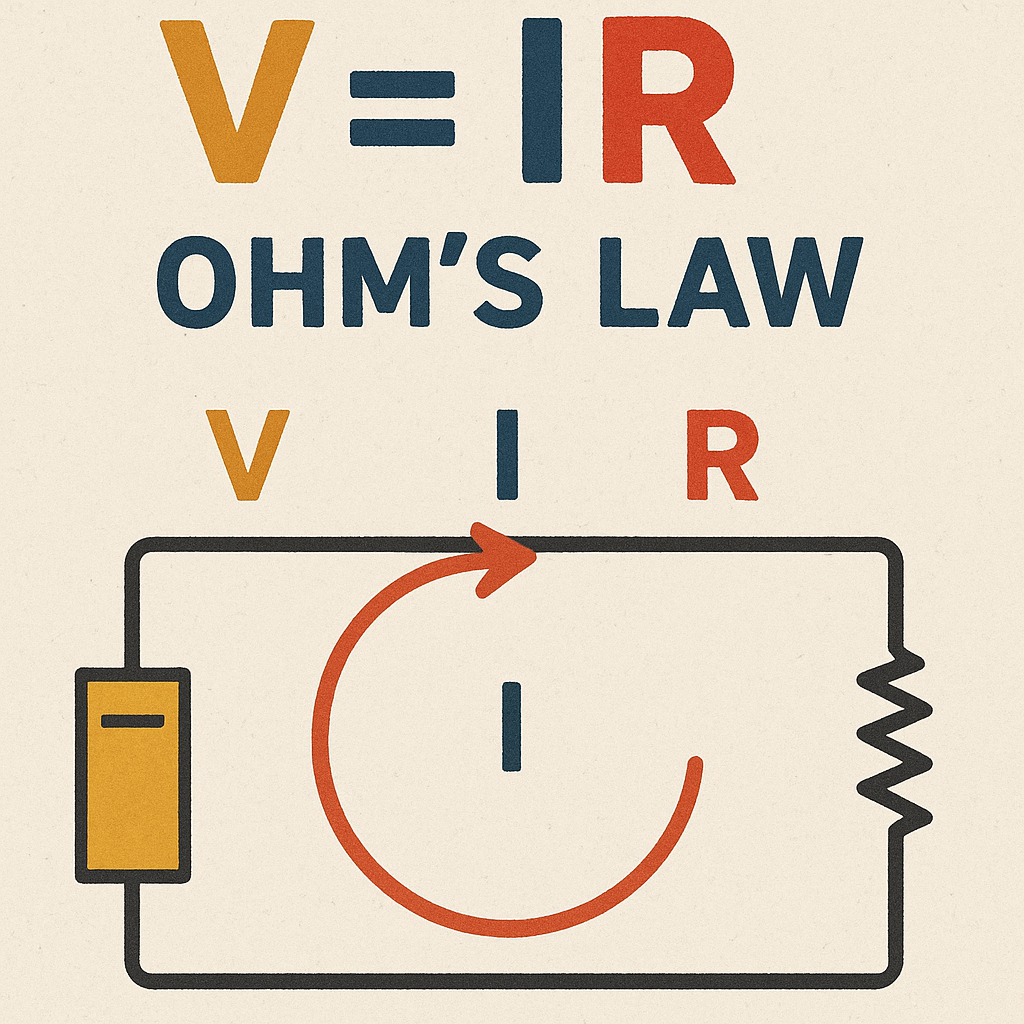

At its core, Ohm’s Law is a relationship between three key electrical parameters: voltage (V), current (I), and resistance (R). It defines how these variables interact in a circuit, providing us with a simple yet powerful way to analyze and design electrical circuits.



The Ohm’s Law Formula

The mathematical expression of Ohm’s Law is:

$$V = I \times R$$

Where:

• $V$ is the voltage (in volts, V) across a conductor or component.

• $I$ is the current (in amperes, A) flowing through the component.

• $R$ is the resistance (in ohms, Ω) of the conductor.

This relationship can also be rearranged in two other forms to solve for current and resistance:

$$I = \frac{V}{R}$$ $$R = \frac{V}{I}$$

This simplicity allows engineers and technicians to easily calculate voltage, current, and resistance when designing circuits and troubleshooting electrical problems.

Understanding the Key Components in Ohm’s Law

Before diving deeper, it’s important to understand the three variables in Ohm’s Law and their role in an electrical circuit.

1. Voltage (V)

Voltage, often referred to as electrical potential difference, is the force that pushes electric charge through a conductor. It is measured in volts (V). In an electrical circuit, voltage can be thought of as the pressure that drives current through a wire, much like water pressure driving water through a pipe.

2. Current (I)

Current is the flow of electric charge. It is measured in amperes (A). Current represents how many electrons pass through a conductor per second. The higher the current, the more electrons flow through the circuit.

3. Resistance (R)

Resistance is the opposition to the flow of electric current. It is measured in ohms (Ω). Materials with high resistance (like rubber or glass) resist the flow of electricity, while materials with low resistance (like copper) allow current to flow more easily.

How Ohm’s Law Works in Real-World Circuits

Understanding how Ohm’s Law works in practical terms is essential for engineers, electricians, and technicians. Let’s explore real-world applications of Ohm’s Law.

Example 1: Simple Circuit Analysis

Let’s say you have a circuit powered by a 9V battery, and it contains a resistor of 3 ohms. To calculate the current flowing through the resistor, we can use Ohm’s Law:

$$I = \frac{V}{R} = \frac{9V}{3Ω} = 3A$$

In this case, the current flowing through the circuit is 3 amperes.

Example 2: Power Dissipation in a Resistor

In many applications, you need to calculate the power dissipated by a resistor. The power dissipated by a resistor is given by the formula:

$$P = V \times I$$

From the previous example, we know that $V = 9V$ and $I = 3A$. Therefore, the power dissipated by the resistor is:

$$P = 9V \times 3A = 27W$$

This means the resistor dissipates 27 watts of power.

Example 3: Voltage Drop in a Circuit

Consider a circuit with two resistors in series: one with 4Ω resistance and the other with 2Ω resistance. If the circuit is powered by a 12V battery, you can calculate the voltage drop across each resistor using Ohm’s Law.

For the 4Ω resistor:

$$V = I \times R = \frac{12V}{(4Ω + 2Ω)} \times 4Ω = 8V$$

For the 2Ω resistor:

$$V = I \times R = \frac{12V}{(4Ω + 2Ω)} \times 2Ω = 4V$$

So, the voltage drop across the 4Ω resistor is 8V, and the voltage drop across the 2Ω resistor is 4V.

Graphical Representation of Ohm’s Law

Another way to understand Ohm’s Law is through a graphical representation. If you plot voltage (V) on the vertical axis and current (I) on the horizontal axis for a resistor, the resulting graph will be a straight line. The slope of the line represents the resistance (R).

• A steeper slope indicates higher resistance.

• A flatter slope indicates lower resistance.

This linear relationship is a hallmark of ohmic materials—materials that obey Ohm’s Law.

Applications of Ohm’s Law

Ohm’s Law is applied in almost every aspect of electrical engineering. Here are some key applications:

1. Circuit Design: Engineers use Ohm’s Law to design electrical circuits by selecting appropriate resistors, capacitors, and other components that meet voltage, current, and resistance requirements.

2. Troubleshooting: Technicians rely on Ohm’s Law to identify issues in malfunctioning circuits by measuring the voltage, current, and resistance at various points in the circuit.

3. Power Systems: Ohm’s Law helps in calculating the power used by components in power distribution systems, ensuring that electrical devices operate efficiently without overloading.

4. LED and Diode Protection: Ohm’s Law is crucial in selecting the right current-limiting resistors for devices like LEDs, ensuring they do not burn out due to excessive current.

5. Battery and Power Supply Design: Ohm’s Law aids in selecting the appropriate voltage and current ratings for batteries and power supplies to ensure safe and optimal operation.

Limitations of Ohm’s Law

Although Ohm’s Law is widely applicable, it has its limitations:

• Non-linear Components: Components such as diodes, transistors, and light bulbs do not obey Ohm’s Law. Their current-voltage characteristics are non-linear, meaning the relationship between voltage and current is not constant.

• Temperature Effects: For most conductors, resistance increases with temperature. This is known as the temperature coefficient of resistance. For example, a filament bulb will exhibit increasing resistance as it heats up.

• High-Frequency Circuits: In high-frequency circuits, inductive and capacitive reactances come into play, and simple resistance does not fully describe the behavior of the circuit.

• Superconductors: At extremely low temperatures, certain materials exhibit zero resistance—a phenomenon known as superconductivity—which does not follow Ohm’s Law.

Frequently Asked Questions (FAQs)

Q1: Is Ohm’s Law applicable to all electrical components?

A: No. Ohm’s Law applies only to ohmic materials—materials that exhibit a linear relationship between voltage and current. Non-linear components, such as diodes and transistors, do not follow Ohm’s Law.

Q2: What is an ohmic resistor?

A: An ohmic resistor is a device that follows Ohm’s Law, meaning its resistance remains constant regardless of the applied voltage or current. Resistors made from materials like carbon or metal oxide are typically ohmic.

Q3: How does temperature affect resistance?

A: For most materials, resistance increases with temperature. However, in semiconductors, resistance typically decreases with temperature. This temperature dependence must be considered in circuits subject to temperature changes.

Q4: Can resistance ever be negative?

A: In standard circuits, resistance cannot be negative. However, certain active devices and quantum systems may exhibit negative resistance behavior, where an increase in voltage results in a decrease in current.

Q5: How does Ohm’s Law relate to power calculations?

A: Power dissipated in a resistor can be calculated using Ohm’s Law. The formula for power is:

$$P = V \times I$$

Alternatively, power can be calculated using resistance and voltage or current:

$$P = \frac{V^2}{R}$$

or

$$P = I^2 \times R$$

This allows engineers to estimate the power dissipated by resistors and design circuits accordingly.

Conclusion

Ohm’s Law is a cornerstone of electrical engineering, providing a simple yet powerful tool for understanding how voltage, current, and resistance interact in a circuit. From basic circuit analysis to advanced system design, mastering Ohm’s Law is essential for anyone working with electrical systems. Whether you're designing power systems, troubleshooting circuits, or building electronics, this fundamental principle remains at the heart of the process.

By understanding Ohm’s Law in detail and recognizing its limitations, you can improve your circuit design skills, enhance system performance, and solve electrical problems efficiently.
