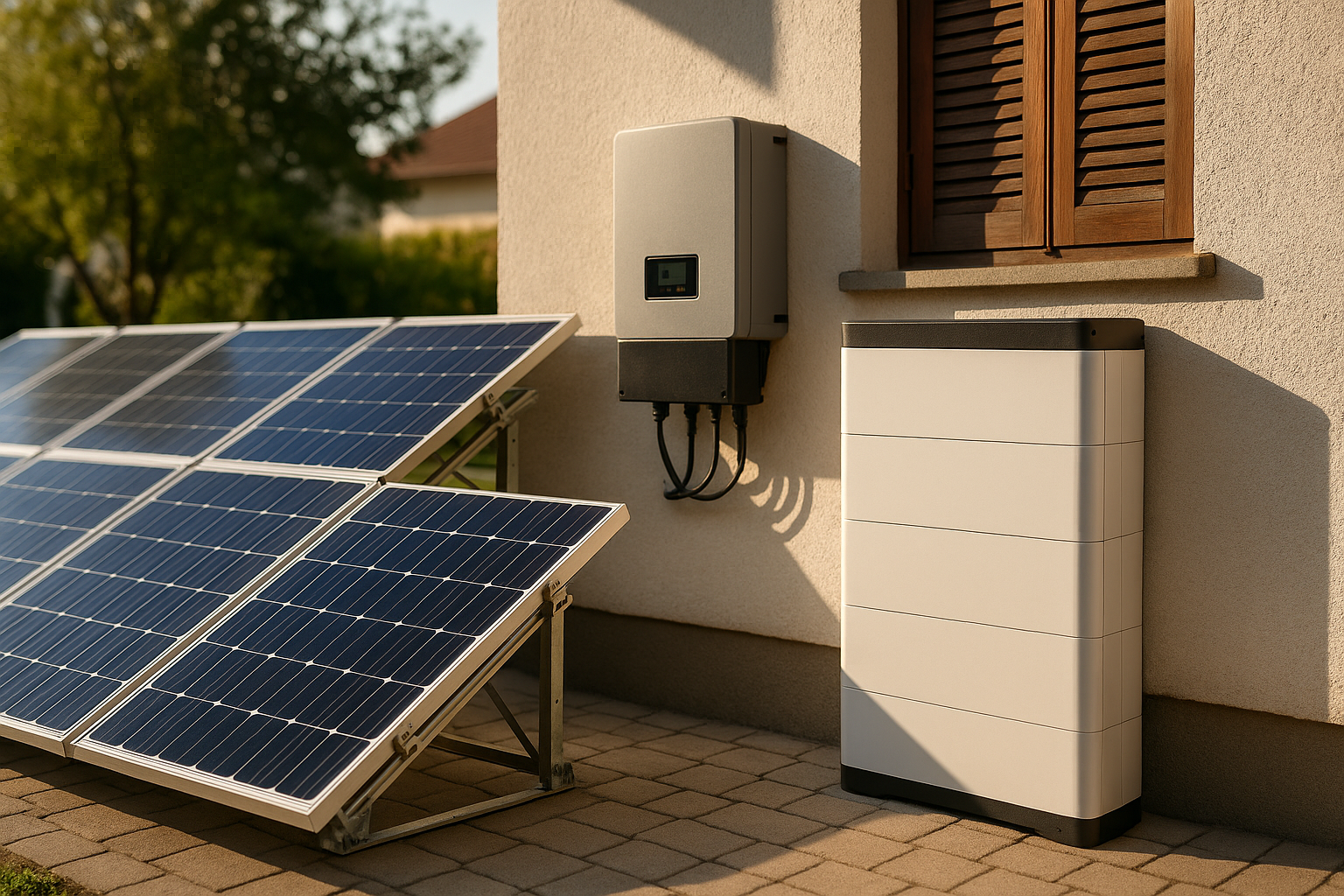

Battery Storage Integration with Solar PV: Sizing, Control, and System Design

Battery storage has become a critical component in modern solar PV systems, especially for enhancing energy reliability, self-consumption, and grid independence. Whether for residential, commercial, or utility-scale applications, integrating batteries with solar power introduces a range of technical challenges and design opportunities. This article explores the key aspects of battery storage integration — including sizing methods, control strategies, and system design — supported by examples, equations, and real-world analysis.

1. Why Integrate Battery Storage with Solar PV?

Key Benefits:

Time-shifting: Store excess solar energy during the day and use it at night.
Backup power: Provides electricity during grid outages.
Peak shaving: Reduce demand charges by supplying stored power during peak hours.
Grid services: Offer frequency regulation and voltage support.
Energy independence: Less reliance on external power sources.

2. Battery Technologies Used in Solar PV Systems

Type	Characteristics	Applications
Lead-Acid	Low cost, short cycle life	Small off-grid systems
Lithium-ion	High efficiency, long life, compact size	Residential & commercial
Flow batteries	Scalable, long cycle life, lower energy density	Utility-scale energy storage

3. System Configurations for Battery Integration

a) DC-Coupled Systems:

PV and battery share a common DC bus.
One inverter is used for both solar and storage.
Higher efficiency due to fewer conversions.

b) AC-Coupled Systems:

PV and battery each have separate inverters.
Easier retrofit for existing PV systems.
Allows greater flexibility for control and sizing.

4. Battery Sizing: Principles and Example

a) Key Parameters:

Daily energy consumption (E_load)
Depth of Discharge (DoD)
Autonomy period (n days)
System losses and efficiency (η)

b) Sizing Equation:

\text{Battery Capacity (kWh)} = \frac{E_{\text{load}} \times n}{\text{DoD} \times \eta}

Where:

$E_{\text{load}}$ = Daily energy demand (kWh)
$n$ = Number of days of autonomy
$\text{DoD}$ = Usable fraction of battery capacity
$\eta$ = System efficiency (typically 85%–95%)

Example Calculation:

Given:

Daily load = 10 kWh
Autonomy = 2 days
DoD = 80%
System efficiency = 90%

\text{Capacity} = \frac{10 \times 2}{0.8 \times 0.9} = \frac{20}{0.72} \approx 27.78 \text{ kWh}

So, a 27.78 kWh battery bank is required.

5. Inverter and Charger Selection

Key Parameters:

Peak load power (W)
Surge capacity
Inverter efficiency
Compatibility with battery type (voltage, BMS)

For hybrid systems, hybrid inverters capable of managing both grid and battery functions are recommended.

6. Control Strategies for Battery Charging and Discharging

a) Rule-Based Control

Simple threshold-based decisions.
Example: Discharge battery when load > solar.

b) Time-of-Use (TOU) Optimization

Charges batteries when grid tariffs are low and discharges when high.

c) State-of-Charge (SoC) Control

Ensures battery longevity by maintaining SoC within healthy range (20%–80%).

d) AI/Machine Learning Algorithms

Predictive analytics based on load and solar forecasts.
Example: Reinforcement learning for optimal dispatching.

7. Design Considerations and Safety

Electrical Design:

Proper cable sizing to avoid voltage drops.
Protection devices (fuses, circuit breakers, SPD).
Isolation switches and disconnects.

Thermal Management:

Batteries degrade faster at high temperatures.
Use ventilation, heat sinks, or active cooling.

Battery Management System (BMS):

Monitors voltage, current, temperature.
Prevents overcharge, deep discharge, and thermal runaway.

Standards and Compliance:

BS EN 62619 – Battery safety requirements.
BS EN IEC 62485-1 – Battery installation safety.
BS 7671 – UK Wiring Regulations (Part 712 for solar PV systems).

8. Example System Design

Scenario:
A residential user has:

5 kW rooftop solar PV
Daily load: 15 kWh
Peak load: 3 kW
Wants backup for 1 day

Design Summary:

Battery: $\frac{15}{0.8 \times 0.9} = 20.83 \text{ kWh}$ ≈ 21 kWh
Inverter: 5 kW hybrid inverter with 6 kW surge capacity
Control: TOU + SoC-based logic
Mounting: Wall-mounted Li-ion battery (indoor) with BMS

9. Challenges and Mitigation

Challenge	Solution
High upfront cost	Government incentives, leasing models
Battery degradation	Smart charging, thermal management
Fire and safety risks	Use certified batteries and enclosures
Sizing mismatch	Load profiling and dynamic analysis

10. Real-World Applications

Residential backup systems in areas with unreliable grid supply.
Commercial energy shifting to reduce peak demand charges.
Off-grid systems in rural or remote locations.
Microgrids integrating solar, storage, and generators.
Grid-tied smart homes for energy cost optimization.

FAQs

Q1. How long do solar batteries last?

Most lithium-ion batteries last 8–15 years, depending on usage, temperature, and DoD.

Q2. Can I retrofit batteries to an existing solar PV system?

Yes. AC-coupled battery systems are ideal for retrofitting.

Q3. What’s the difference between usable and nominal battery capacity?

Nominal capacity is the total rated storage.
Usable capacity considers the DoD (e.g., 80% of 10 kWh = 8 kWh usable).

Q4. Is it safe to keep batteries indoors?

Yes, if the batteries are certified, properly ventilated, and installed per BS EN 62485-2 standards.

Q5. Are there software tools for battery-PV design?

Yes, tools like HOMER, PV*SOL, and PVSyst allow PV-battery simulation and optimization.

Conclusion

Battery storage is a powerful addition to solar PV systems, enabling energy resilience, cost savings, and greater renewable penetration. Proper sizing, intelligent control, and standard-compliant design are critical for ensuring performance, longevity, and safety. As battery costs continue to fall and technologies improve, solar + storage is set to become the standard energy architecture of the future.
